FINNED-TUBE
Heat exchangers are designed to order for a wide range of refrigeration machines, taking into account all customer requirements, in accordance with the most advanced technologies with low environmental impact and compatible with the use of natural refrigerants.
Cool Factory offers modern standard and individual quality solutions of finned-tube heat exchangers for cooling and air heating systems for manufacturers of retail cabinets, chillers, ventilation systems, heat pumps, transport-refrigeration machines, refrigeration equipment.
We offer heat exchange units for:
RETAIL CABINETS
CHILLERS
VENTILATION SYSTEMS
HEAT PUMPS
TRANSPORT-REFRIGERATION MACHINES
REFRIGERATION EQUIPMENT
Specification:
| Tube diameter, mm | 7mm |
| Geometry | 25х21,65 |
| Fin thickness, mm | 0,12 or 0,25 |
| Number of tubes in height, pcs | 4 - 50 |
| Number of tubes in depth, pcs | 2 - 12 |
| Distance between fins, mm | 1,6 -7,00 |
| Finned lenght, mm | 150-3800 |
| Fin material | Aluminum, Bluefin, Epoxy, Copper, мідь |
| Frame material | DX51D, AISI 304, Almg3 |
ADVANTAGES:
SAVING ON CHARGING WITH REFRIGERANT BY 27%
SOFTWARE FOR EQUIPMENT SELECTION AND CALCULATIONS
OWN PRODUCTION, OPTIMIZED LOGISTICS SYSTEM
GUARANTEE OF QUALITY. AVAILABILITY OF ISO CERTIFICATES AND STANDARDS
POSSIBILITY OF BRANDING FINISHED PRODUCTS
BRANDING OF PRODUCTS FOR OEM CUSTOMERS
Flexible approach to technical solutions. All parts are made in-house production of a full cycle: a block, a case, a diffuser for a fan. Optimization of flows of raw materials, materials from suppliers for production and finished products for the end user. Speed of production and high quality of products – the task number 1.
The presence of components for production allows you to order from one piece of equipment, does not require freezing of assets in warehouse balances and quickly receive an order.
The presence of its own program (developed on the basis of Unilab) for the selection of serial equipment online, for individual solutions, calculations and desig, the certified program of the Italian manufacturer Unilab is used, which ensures the accurate design of heat exchangers.
Each product must be pressure tested for tightness. We produce products that meet CE and ISO 9001 standards.
MANUFACTURER OF FINNED-TUBE HEAT EXCHANGERS WITH A TUBE DIAMETER OF 7 MM.
CONFIGURATION:
1. Pipe and lamella

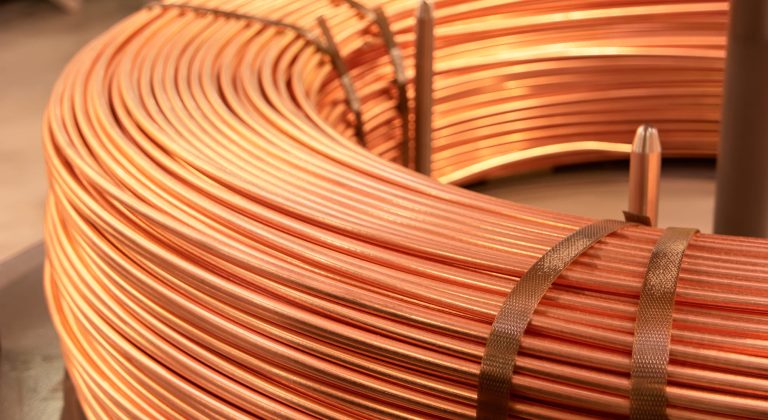

Choosing the right material in the production of heat exchangers is very important. Inside the copper tubes Heating/cooling liquid circulates, which condensing\cooling\heating\evaporating during the operation of the heat exchanger, heating\cooling the air that passes through. Configuration of circuits\passes has different values depending on the operational mode of the heat exchanger. For production smooth or internal grooved pipes are used according to the standard EN 12735-2.

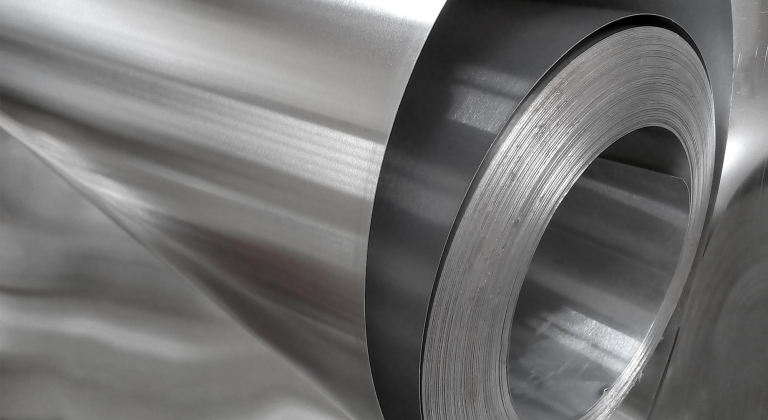

Aluminum alloy, known for its exceptional properties, revolutionizes the industry due to its unsurpassed advantages in heat output, strength and stability. Aluminum has a natural recycling property, making this alloy an environmentally responsible choice. Using our technology you contribute to creating a sustainable future and reducing emissions.
2. Casing
The casing is the bearing structure of the heat exchanger,
which serves to fix it in the working product.
Dimensions and its geometry are executed according to
your requirements.
3. Connections:
Collectors serve for supply\remove of coolant to the heat exchanger. Headers can be made with threaded connection, flange connection soldering or welding. Drainage and air bleeding are provided in the collectors. During manufacturing, the rolling method is used. For connection in evaporators, a distributor is used, made individually due to the thermodynamic characteristics of the heat exchanger.
CALCULATION REQUEST
