AIR COOLED
The condenser is an important component of any cooling system or compressor-condenser unit that promotes heat exchange between the coolant and the environment.

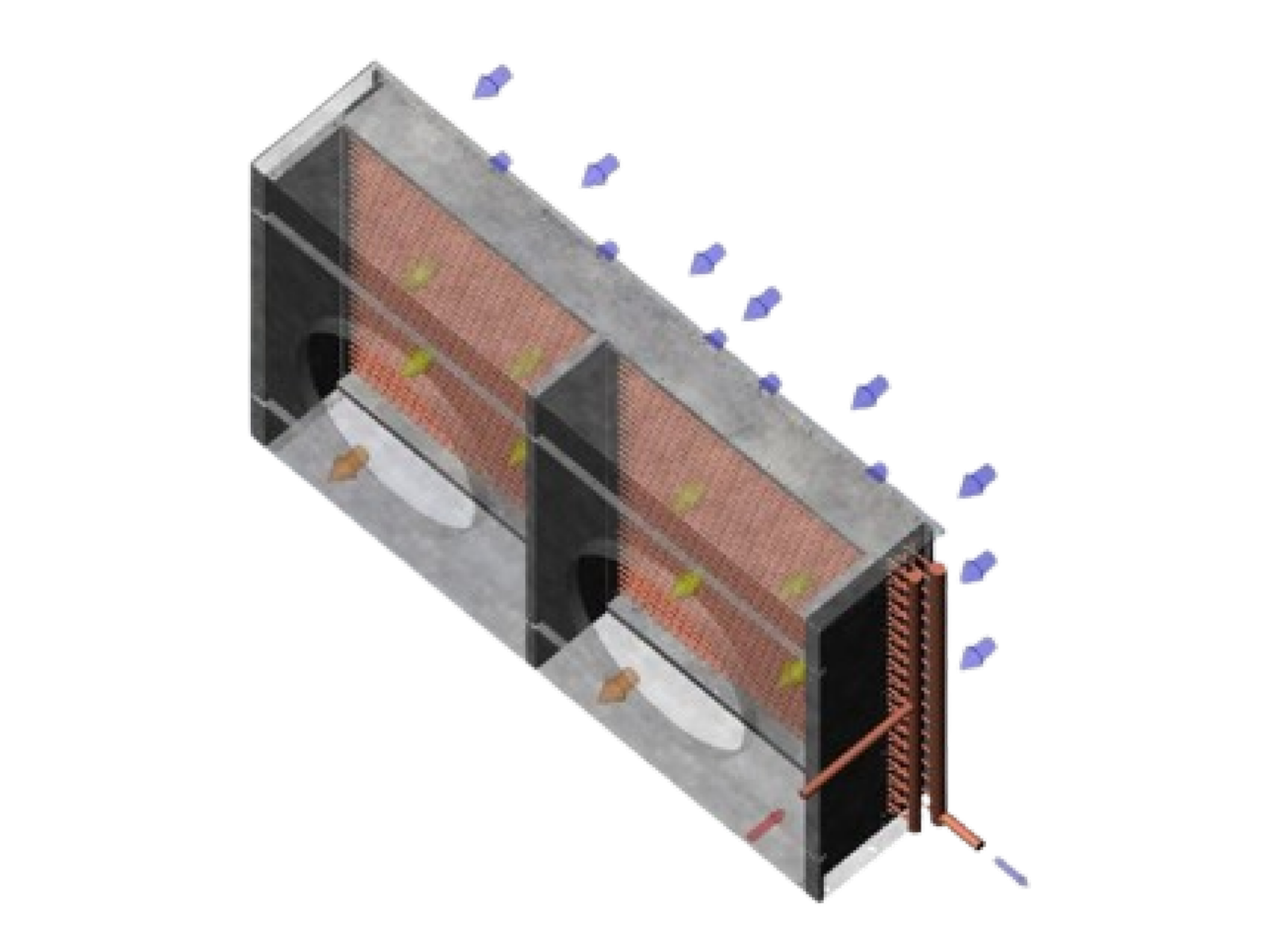

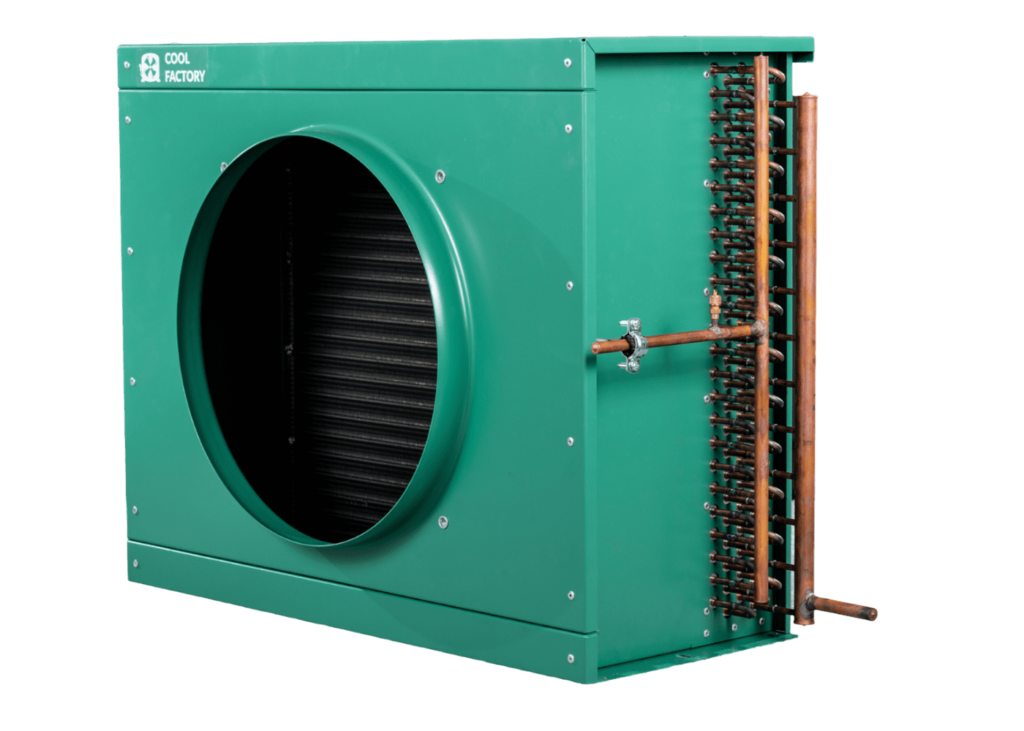

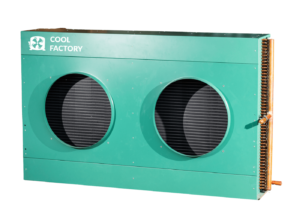

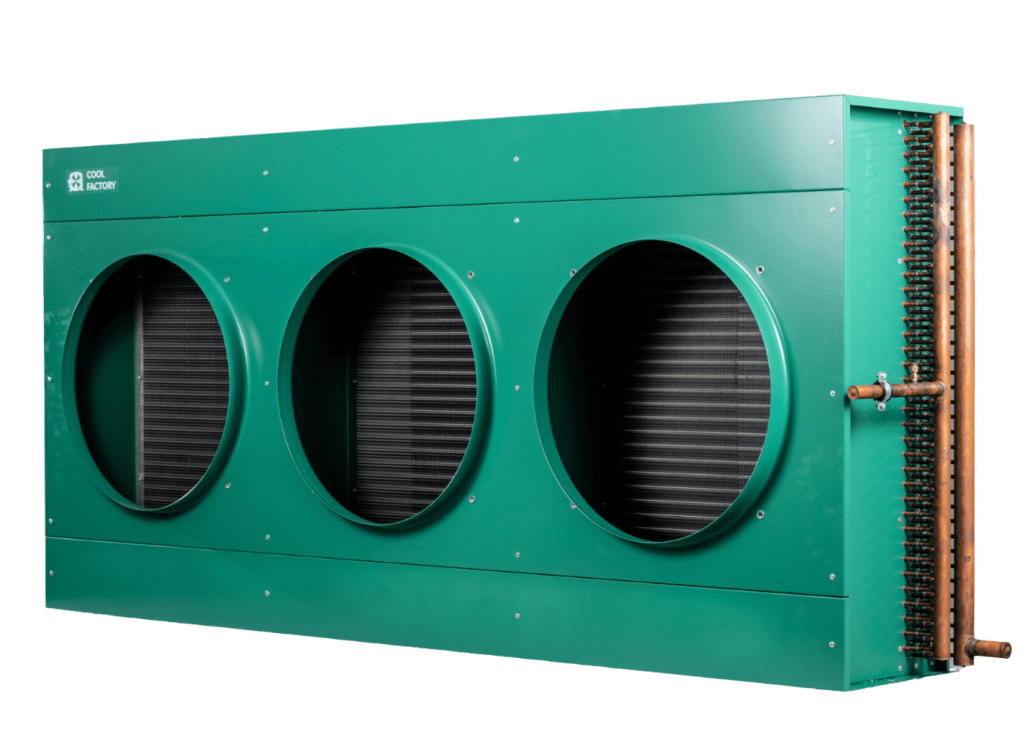

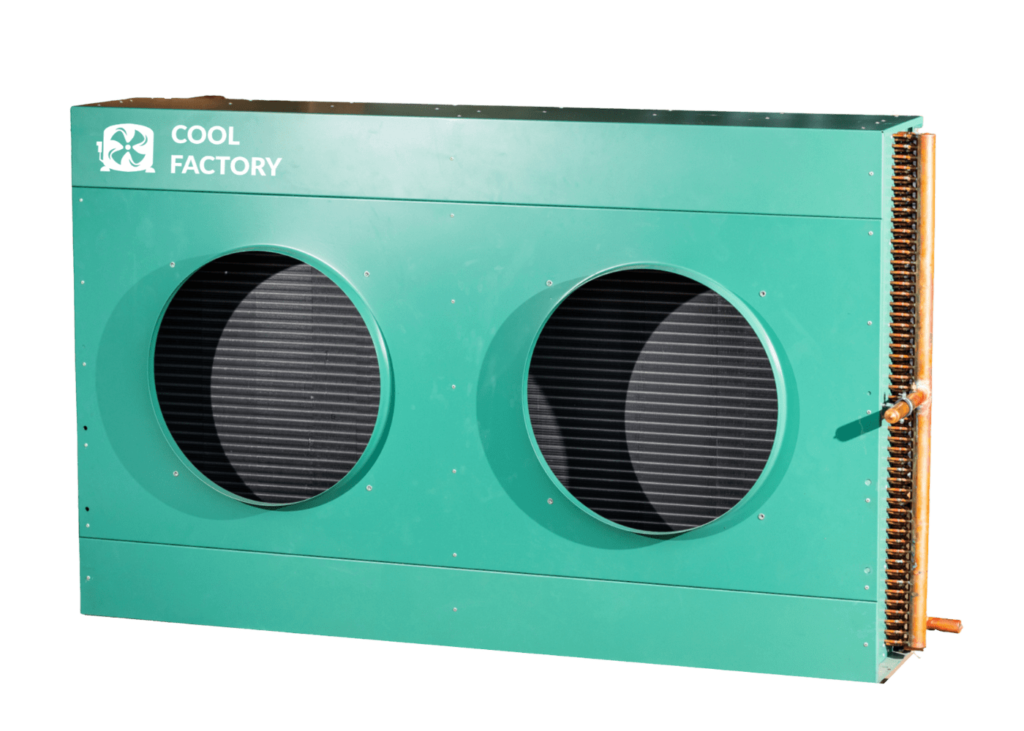

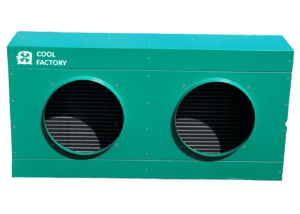

Air cooled condenser is a device used in air conditioning and industrial refrigeration systems to convert gaseous refrigerant into a liquid state by removing heat from the gas to the surrounding air. In the condenser there are 3 phases – overheating, condensation and subcooling the liquid coolant. The main function of the freon condenser is to help remove excess heat from the system so that the gas freon can be used again to cool the room or refrigerator compartment.
OUR ADVANTAGES:
SAVING ON CHARGING WITH REFRIGERANT BY 27%
SOFTWARE FOR EQUIPMENT SELECTION AND CALCULATIONS
OWN PRODUCTION, OPTIMIZED LOGISTICS SYSTEM
GUARANTEE OF QUALITY. AVAILABILITY OF ISO CERTIFICATES AND STANDARDS
NO MINIMUM ORDER QUANTITY
POSSIBILITY OF BRANDING FINISHED PRODUCTS

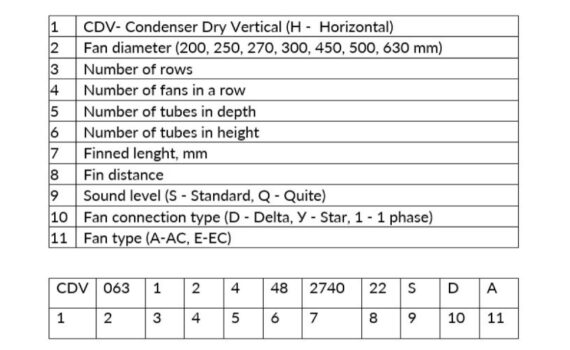

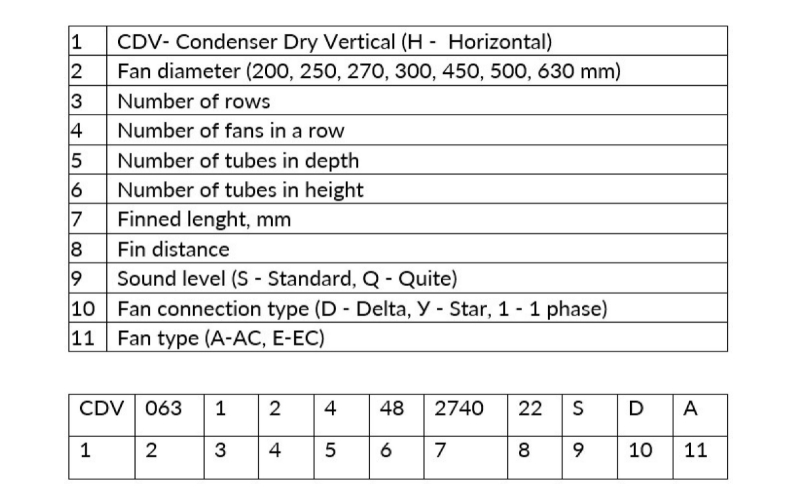

VARIATION:
TECHNICAL CHARACTERISTICS:
TYPES OF CONDENSERS:

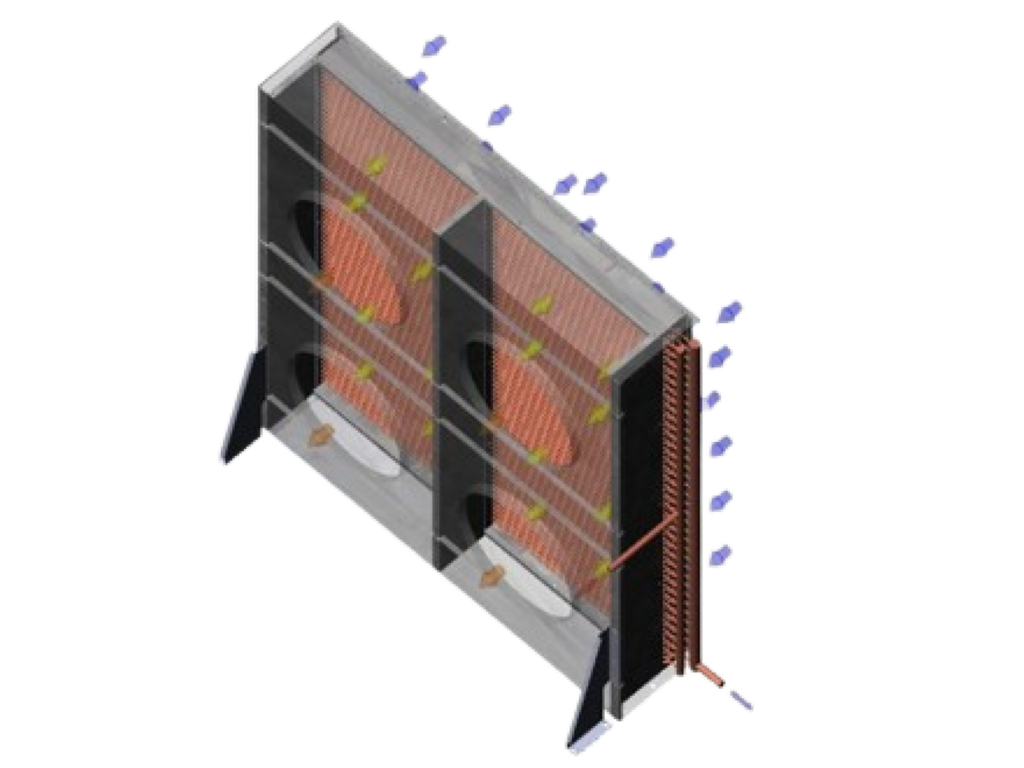

HEAT PUMP edition for heat pumps. Ensures the operation of the air cooler condenser in reverse mode as evaporator
ТECHNICAL CHARACTERISTICS:
Own manufacturing of frames with fan diffusers with a diameter of Ø 200, 250, 270, 300, 450, 500, 630 mm
Fan plate is produced from condenser housing
100% high-quality powder coating
Installation necessary fans – Ziehl Abegg, Weiguang, FanMaer
Оwn calculation program based on the UNILAB software
Сondenser housing is made of high quality galvanized steel. As alternative stainless steel casing
Еach condenser is tested 10% above its maximum operating pressure* and shipped filled with nitrogen
Contactless connection of tubes to the housing ensures a long life of the condenser
Рower range from 4 to 275 kW
Рarameterization of the design allows scaling capacitors for any task
*Maximum operating pressure for HFC – 32 Ваг, R410A – 41 Ваг. Specifications calculated at 40% relative humidity
